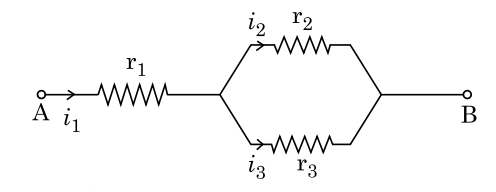

Three resistors having resistances $r_1, r_2,$ and $r_3$ are connected as shown in the given circuit. The ratio $\frac{i_3}{i_1}$ of currents in terms of resistances used in the circuit is:

medium

Current Electricity

2021

physics

$\frac{r_1}{r_2 + r_3}$

Explanation

To solve this problem, we need to analyze the circuit and apply Kirchhoff's laws. $\\$ The circuit consists of three resistors: $r_1, r_2,$ and $r_3. \\$
